Software Update Instructions

USB Software downloads on this page are useable for any SatKing Orbit.

The latest software release date: 01/09/2025.

This software release replaces the July 2025 update.

Installing the latest software keeps you up to date with any changes made on the satellites and also any new improvements we make to the Promax & Promax Plus.

satking promax controller

Updates with this version

  1. Further updated search TP frequency’s for VAST & Foxtel due to VAST and Foxtel services being moved from Optus D3 to Optus 10 when Optus D3 entered an inclined orbit.
  2. This update reflects the further 5x Optus D3 TP's muted by Optus Satellite 1/9/2025

How to install

Download the 3x .BIN files on to a USB memory stick 8GB or smaller in FAT32 format (don’t place .BIN files inside a folder). No need to try to open the files on your PC.

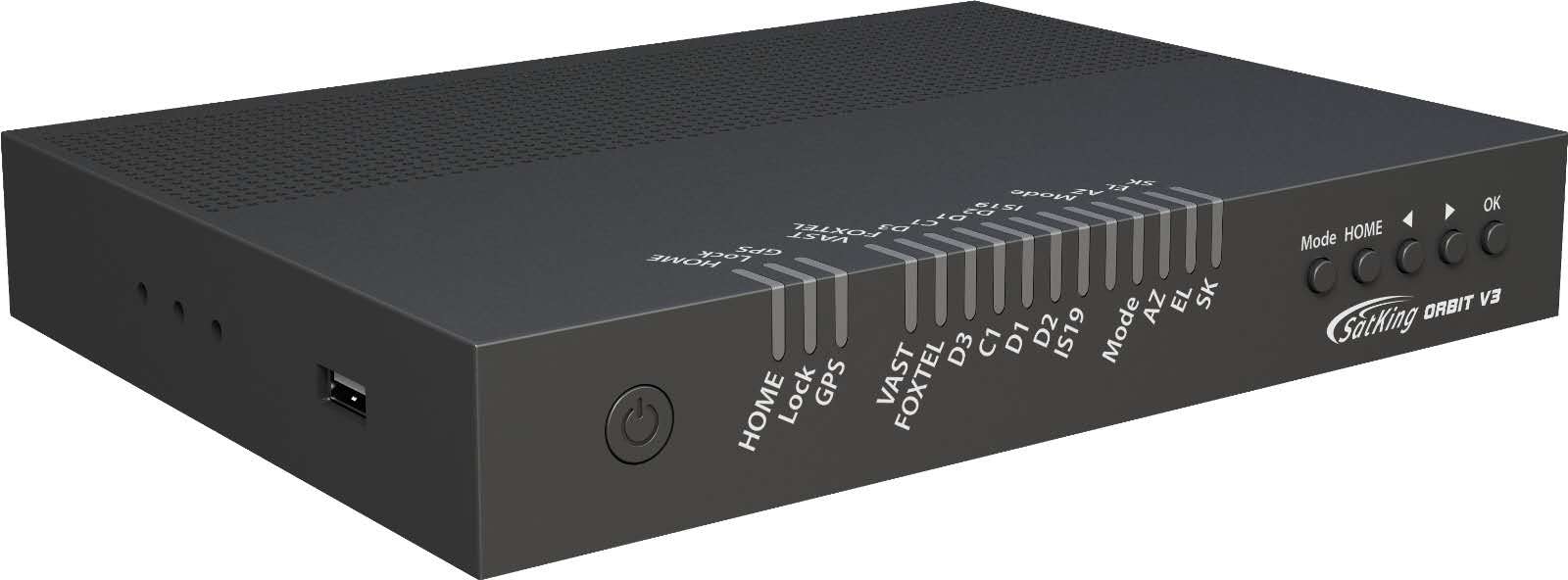

  1. Ensure the Orbit is turned off and plug the USB stick into the USB port on the side of the Orbit controller.
  2. Press and hold in the “OK” button and then press the “Power” button once and release both buttons.
  3. The home, lock and GPS lights will all be illuminated solid for around 10 seconds
  4. When the upgrade is finished all the orange satellite name lights will flash once.
  5. The Orbit controller will now reboot and once the home light is solid the unit is ready for use.

Trouble Shooting

  • If the software loading fails. The home, lock and GPS lights will flash 5 times.
  • The USB may be in the wrong format, the SatKing Orbit requires FAT-32 format. (The change the format to FAT-32 make sure you back up your existing files on the stick as changing the format will wipe the files.) Insert the USB stick into a PC and check the format of the drive by selecting the USB file and right clicking and going to “Properties”, if the file is not FAT-32 you need to go to “format” and select FAT-32 file system. Then you need to download the software again and repeat steps 1 thru 5 again.
  • It is important the USB size is 8GB or smaller.
  • Try a different USB stick.
  • Make sure you can see the 3x .BIN files on the USB stick
