Caravan Satellite Dish

Home / Description

overview

  SKU 5574
  RRP $2395.00

Easy to use, simply power on and Press "OK". The unit will show a flashing green light while the unit searches and then once locked the green flashing light will become solid. Utilising GPS the unit always knows where to find the signal.

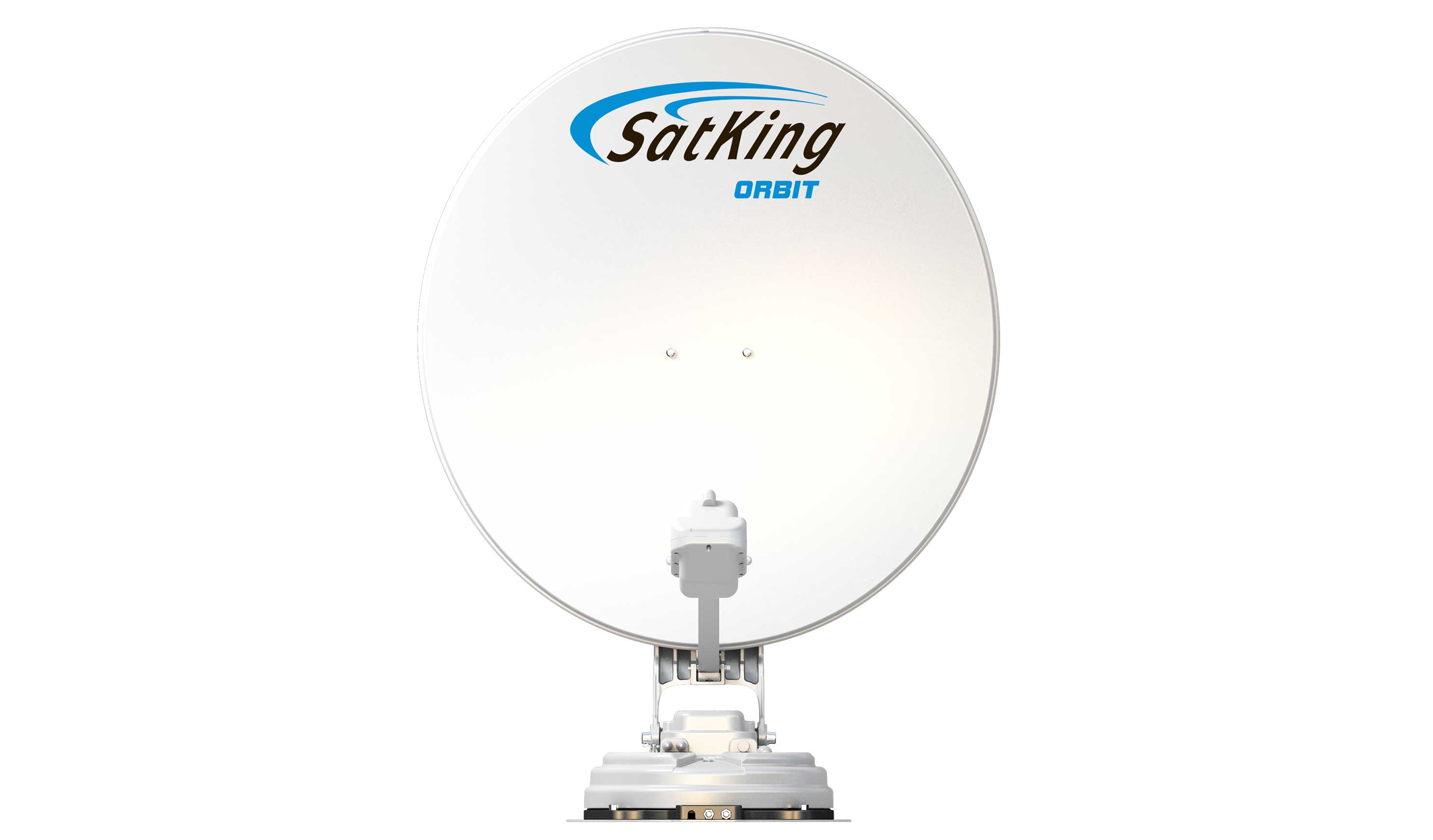

The Orbit has a 85CM high gain dish to provide coverage for VAST & Foxtel Australia wide. Just press OK, simple.

Utilising the latest in GPS technology to locate your exact location, the Orbit will quickly locate the desired satellite signal.

The SatKing Orbit is built for harsh Australian conditions, it’s rugged, well made with all metal drive gears. Designed in Australia, the unit is perfect for travelling off the beaten track., the unit is perfect for travelling off the beaten track.

The Orbit represents great value for money and is big on features but low on cost.

The SatKing Orbit is backed with a 2 year Australian warranty and fully supported by SatKing, a big Australian-owned company. Need assistance or help whilst on the road? Don’t worry, we have a 1300 helpline to assist you on your travels.

  • 85cm High Gain Dish
  • VAST & Foxtel Compatible
  • Fully Automatic Self Aligning
  • Easy to Use
  • Built in 24CH GPS to Find Satellites Fast
  • Australia-Wide Coverage
  • 2 Year Warranty
  • New Large Mounting Plate
  • On Roof Cable Junction Box for Easy Servicing
  • Dual Output LNB as Standard to Suit Twin Tuner STB’s
  • Suits both Caravans and Motorhomes
  • Automatic LNB Skew
  • Powerful DC Motors with Metal Gearing
  • Weatherproof Construction
  • Made for Harsh Australian Conditions
  • MPEG4 HD Compatible
  • Easy Installation
  • 1300 Number Help Line
  • Designed in Australia
  • Made in China

Physical Specifications

  • Dish Dimensions
    86.0 w x 91.0L cm
  • Physical Dimensions
    110.6(L) x 86.0(W) x 18.4(H) cm / 15.1 kg
  • Controller Dimensions
    199.0(w) x 154.0(d) x 31.0(h) mm

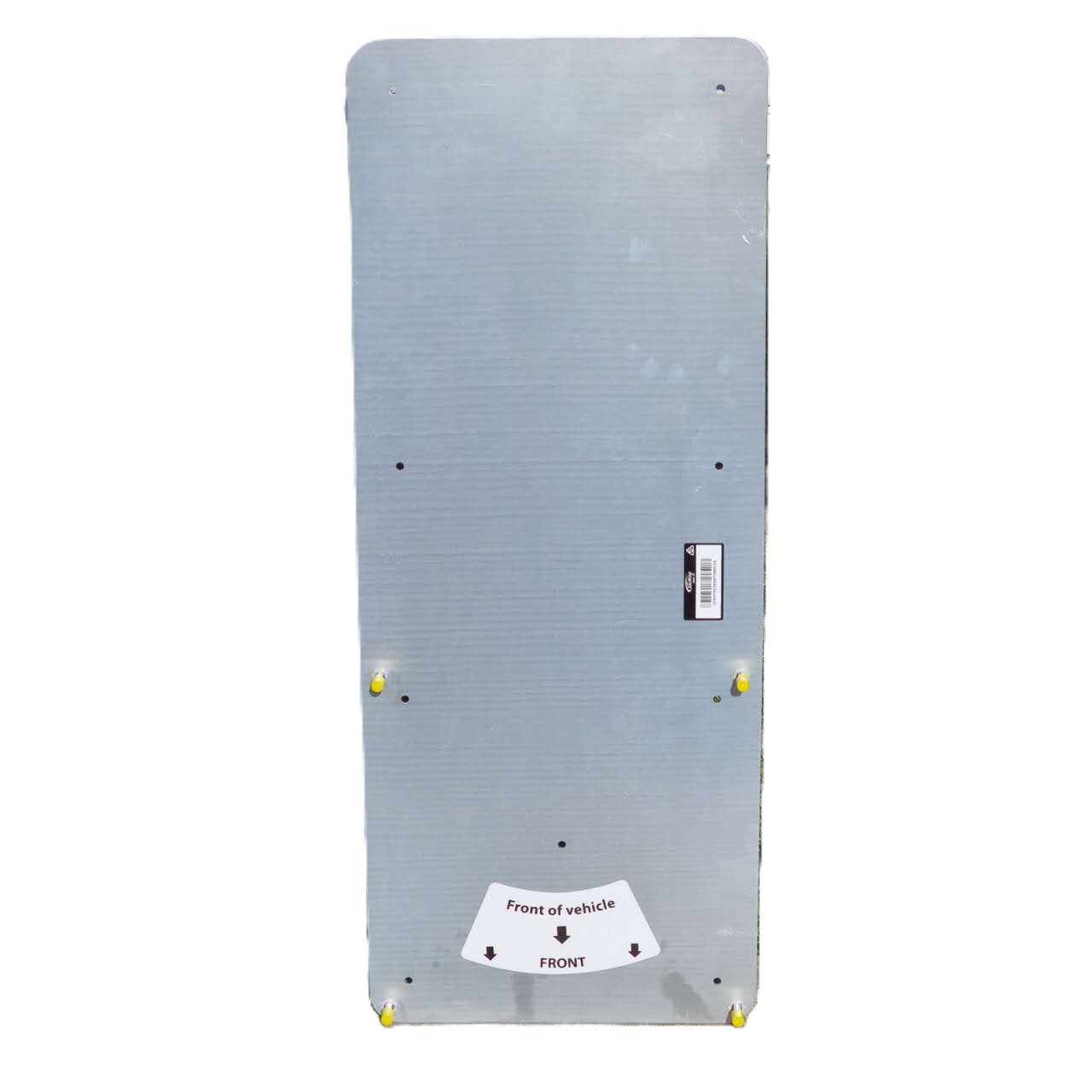

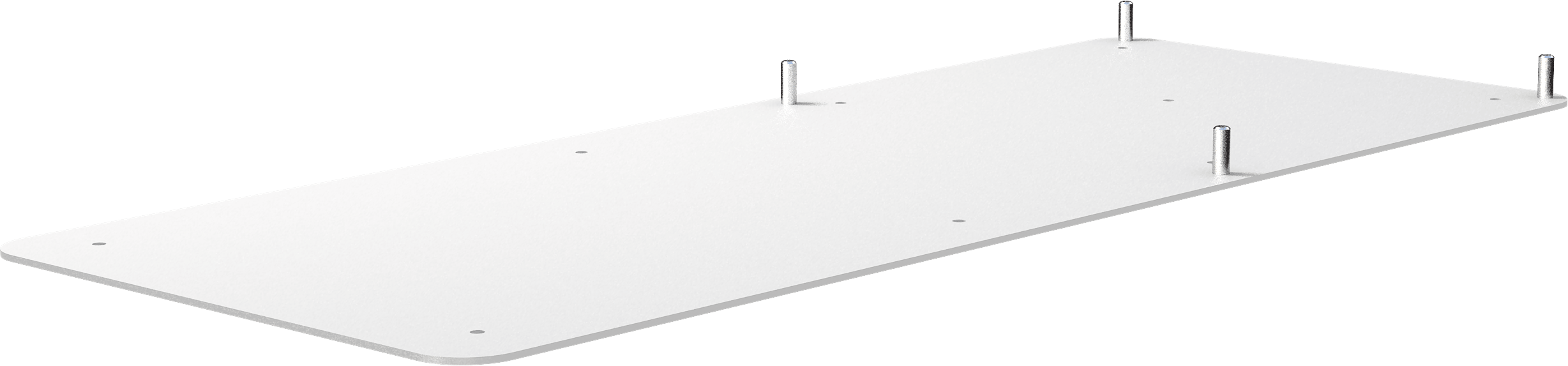

  • Mounting Plate Dimensions
    770(L) x 302 (W) mm
  • Product Weight
    13.8kgs
  • Gift Box Weight
    15.1kgs
  • Operating Temperature Range
    -20°C ~ +60°C

LNB

  • Polarization
    Horizontal/vertical
  • Dual Output Wideband
    Dual Output
  • LNB Input Frequency
    11.75-12.75GHz
  • LNB Output Frequency
    1000 - 2050 MHz

Antenna Adjustment Range

  • Elevation
    0°-145°
  • Azimuth
    390°
  • Skew
    -60° ~+60°

Satellite Searching Time

  • Searching Time
    80 Seconds(Average)

Power

  • Input Voltage
    DC 12 voltage range 12-19V
  • Consumption
    60 Watts in Search Mode - 4W Standby Mode
